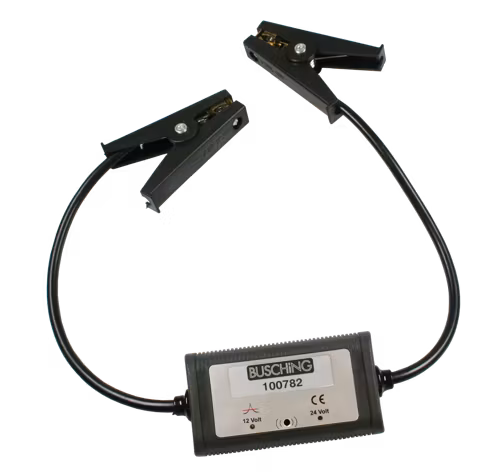

This device is used to protect the on-board electronics from voltage surges that can occur during use from an external power source for a quick start (battery connected to another vehicle or booster, or during welding/arc). The use of this device is easy and fast. Connect the two pliers to the battery terminals. The red indicator light indicates the operating voltage (12V DC / 24V DC). The tone of the buzzer indicates existing voltage spikes, which are eliminated by the overvoltage protection.
Technical data
Charging pliers: fully isolated, pole independent, robust
Signal device: acoustic
Cable length: 84 cm (from terminal to terminal)
TVS-diode data
Battery voltage / electrical system: 12V DC
Rated working peak voltage: 17,1V DC
Breakdown voltage: 18V DC
Maximum terminal voltage 8/20µS: 32,5V DC / 308A
Maximum terminal voltage 10/1000µS: 25,2V DC / 59,5A
Peak impulse power loss: 1500W
Battery voltage / electrical system: 24V DC
Rated working peak voltage: 31,4V DC
Breakdown voltage: 33V DC
Maximum terminal voltage 8/20µS: 59V DC / 169A
Maximum terminal voltage 10/1000µS: 45,7V DC / 33A
