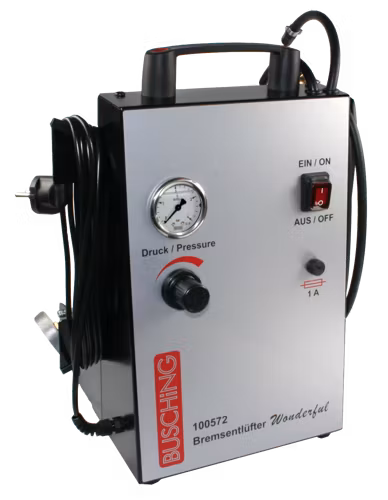

The brake bleeder is specially designed for workshop use and works directly from original containers with up to 10 liters. The high-quality, powder-coated aluminum housing makes brake bleeding feather-light in handling at only 3.7 kg. The system is suitable for normal and ABS brake systems. Since the fluid is taken directly from the container with a hydraulic pump, the work is environmentally friendly and clean. Foaming of the fluid is also prevented and there is no pressure build-up when the container is empty. The pressure is automatically released after the device is switched off, which means that the adapter can be easily removed from the vehicle expansion tank. The brake bleeder can be operated by one person. Likewise, a low-pressure test can be performed on the vehicle. Due to the optimized flow rate, the gas, air, as well as corrosion components are flushed out. A holding device for the adapters and rubber cones is available. The high quality WIKA pressure gauge with stainless steel housing and glycerine filling allows highest reading accuracy and a precision pressure regulator enables easy and accurate regulation of the filling pressure. Due to the patented MaBu design, the system is extensively expandable.
Technical data:
Operation with brake fluid only
Container size: max. 10 l
Stepless pressure adjustment 0 - 3 bar
Filling hose length: 3.5 m with quick coupling
Voltage: 230 V
Dimensions: 32,5 x 40 x 19,50 cm
Weight: 3,7 kg
Scope of delivery:
1 x 100457 Euroadapter E20 made of aluminum
1 x 990199 collecting bottle
3 x 990303 Closing cones for different container sizes
