Assembly Tool for PDC, Diameter: 17/18/19/20/21/22 mm

  • 109.16 EUR
  • excl. tax

In stock.
Dela
Article Number: 100752

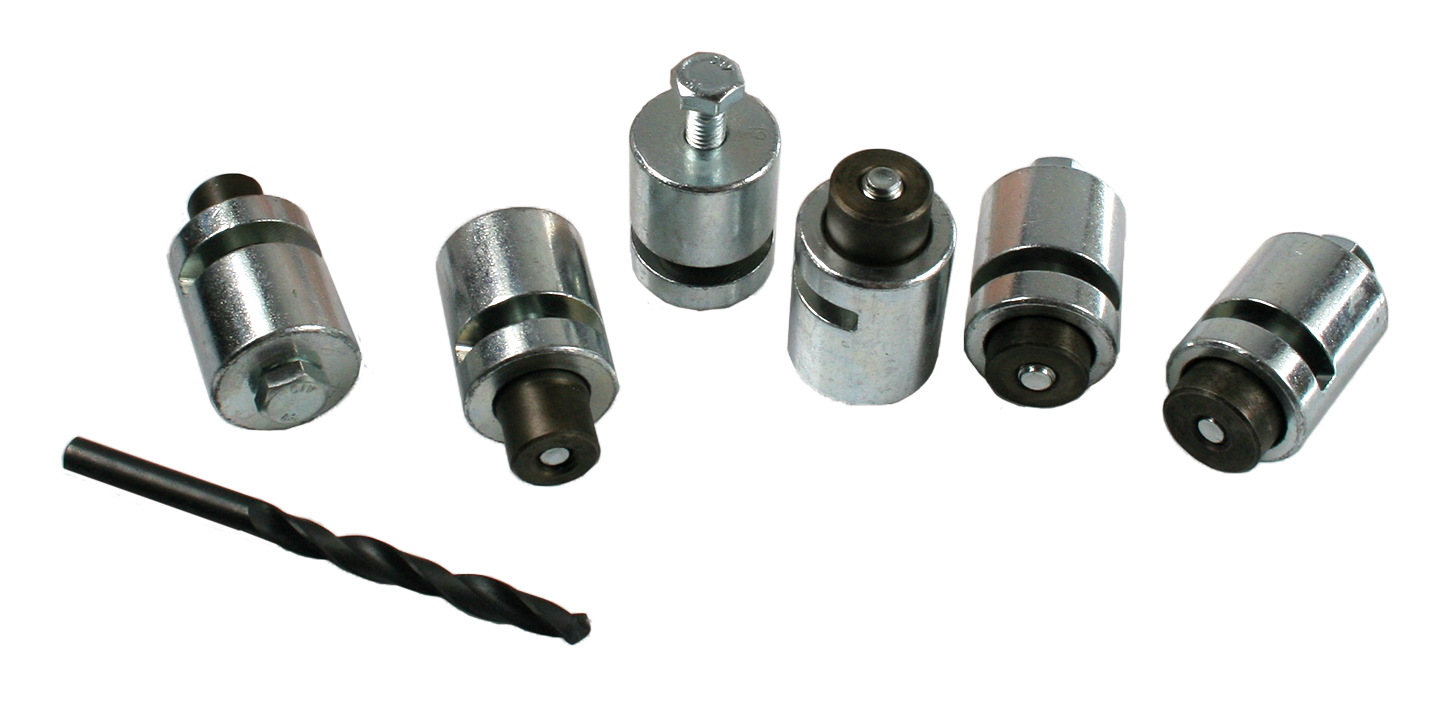

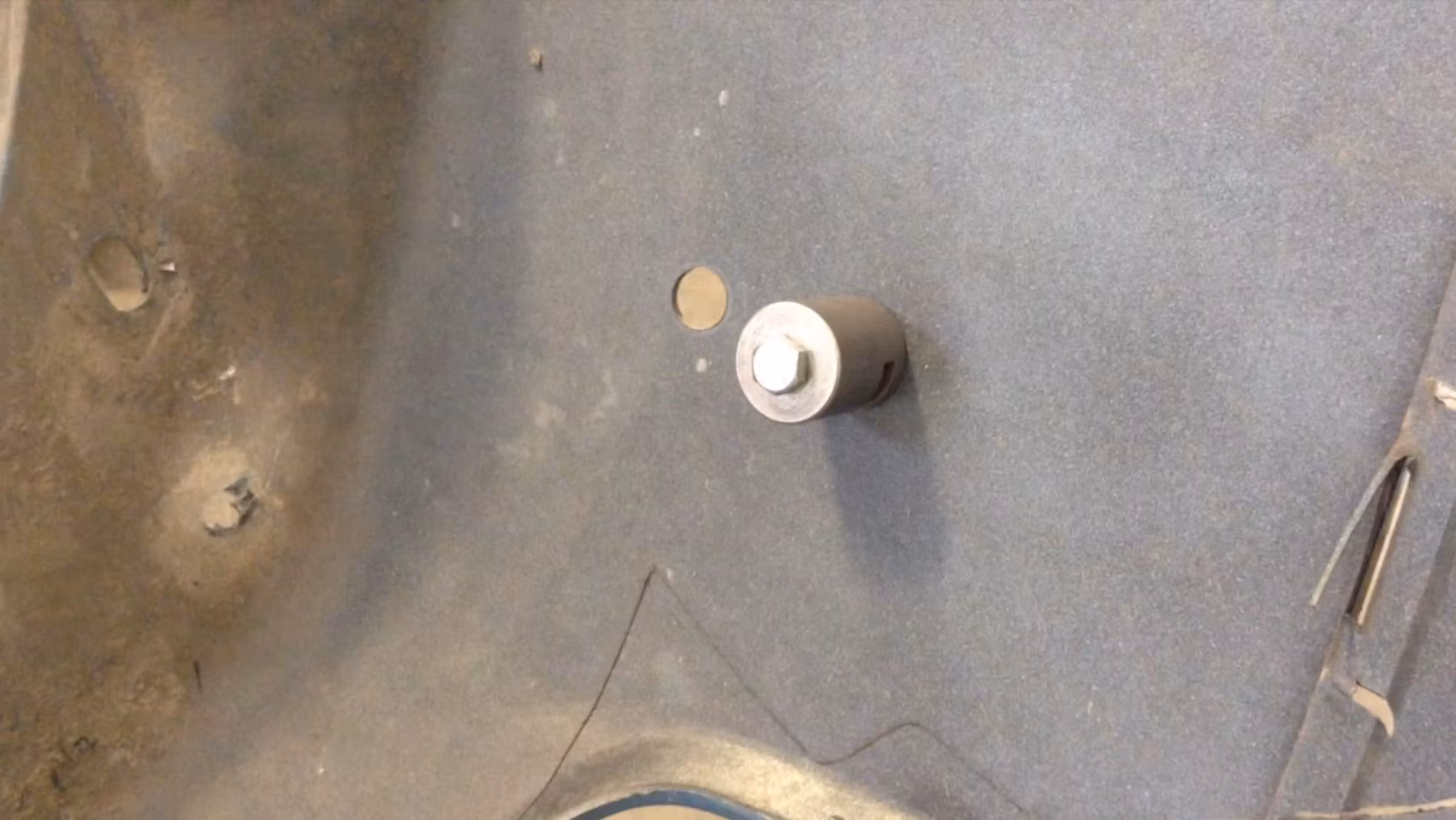

The 7-piece tool set enables a precise punching of holes into the bumper for parking sensor when retrofitting the parking distance control. The punches can be used with a ratchet or a simple cordless drill (13 mm  wrench size). When punching the holes into the bumper there is no damage to the paint, thus repainting becomes unnecessary. The kit contains 6 different diameter sizes of punches: 17, 18, 19, 20, 21 and 22 mm (more sizes upon request). The diameter is marked on the outside of the punch.


Technical data:

  • Punch diameter: 17, 18, 19, 20, 21 and 22 mm
  • Drill: 8,5 mm
  • Material: hardened steel
  • Weight: 1.236 kg
  • Size: 230 x 80 x 40 mm


Scope of delivery:

  • 6 x Punches
  • 1 x Drill
  • 1 x Plastic box
  • 1 x User's manual
