Test Lead Set KFZ114/4 for multimeter

301.68 EUR
excl. tax

Dela

Article Number: 100692

Information
Reviews

Test Lead Set for multimeter

This diagnostic case has an assortment of different components for most connection lines for testing e.g. sensors, valves and injection nozzles.

All leads are sorted by plug, socket pairs and terminal sizes.

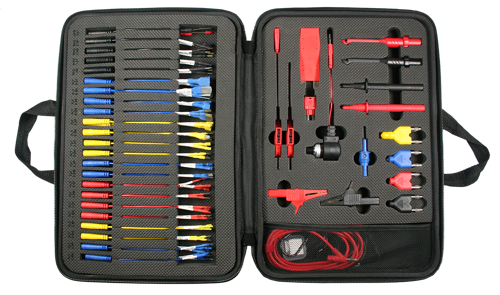

Scope of delivery:

2 x Insulation piercing terminal with needle test probe (1 x red, 1 x black)
2 x Removable test probe 10A (1 x red, 1 x black)
2 x Alligator clip 32A, 1000V (1 x red, 1 x black)
1 x Potentiometer (adjustable up to 10KΩ ± 10%)
3 x LED test lamp polarity/pulse
2 x 3-way measuring plugs
2 x Airbag/SRS simulator plugs with load resistors
1 x ATC fuse adapter with measuring loop
1 x ATC fuse adapter (mini and maxi)
1 x Automotive flat fuse mini adapter
2 x Micro needle test probe (1 x red, 1 x black)
2 x Test lead 4mm plug 1,2m (1 x red, 1 x black)
2 x Lab test lead 4mm plug 1,2m (1 x red, 1 x black)
3 x Interchangeable test resistors: 2 Ohm - 2.2 Ohm - 2.7 Ohm
4 x Flat plug each 0.8 - 1.2 - 2.0 - 2.5 - 3.0 - 5.0 - 6.0 mm on 4 mm socket
Each 4 x flat plug sleeve 0.8 - 1.2 - 2.0 - 2.5 - 3.0 - 5.0 - 6.0 mm on 4 mm socket
4 x Round plug each 1.5 - 2.0 - 3.5 - 4.0 mm on 4 mm socket
4 x Round plug sleeve 1.5 - 2.0 - 3.5 - 4.0 mm each on 4 mm socket
1 x S-hook
1 x Softshell case

Examples of use:

The ATC fuse adapter (mini and maxi) and ATC fuse adapter with measuring loop can be used for measurements with the help of a current clamp.

For a quick and easy way of resistance adjustment, without the help of a multimeter in a simulation of sensor units for resistance measurements, the variable potentiometer (adjustable up to 10KΩ ± 10%) can be used.

The SRS connectors allow confirmation of SRS airbag power consumption by connecting them to check for shorts before installing a new SRS airbag.

The polarity and pulse connectors can be used to verify proper wiring of terminal blocks and to compare pulses or signals between injectors. LED lights up red if polarity is incorrect, LED lights up green if polarity is correct.

Weight

2,1kg

Size

380x100x280
